VIMOS trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2018-04-04T03:35:26 (UT)
  | now: 2024-03-19T09:28:26 (UT) muc03 QC pipeline: vimos-2.9.19 (installed 2016-03-17)
same group: LR_blue LR_red MR HR_blue HR_orange HR_red
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
VIMOS news:
Report news:
DATE*: [?] 2018-03-28
no data | NLT
2018-03-29
no data | NLT
2018-03-30
no data | NLT
2018-03-31
no data | NLT
2018-04-01
no data | NLT
2018-04-02
no data | NLT
2018-04-03
no data | NLT
r...
Raw CAL displays:
no CAL raw files no CAL raw files no CAL raw files no CAL raw files no CAL raw files no CAL raw files no CAL raw files
P...
CAL product quality:
no CAL products no CAL products no CAL products no CAL products no CAL products no CAL products no CAL products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 206 num VAL204,208 73 trace2_central this | last_yr | all Q2, central fibre number
2 QC1DB MEDIAN 200 num VAL199,203 73 trace2_central this | last_yr | all Q1, central fibre number
3 QC1DB MEDIAN 203 num VAL201,205 73 trace2_central this | last_yr | all Q3, central fibre number
4 QC1DB MEDIAN 200 num VAL198,202 73 trace2_central this | last_yr | all Q4, central fibre number
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: 7|
data source:vimos_ifu_score
(QC1 database)
dataset:trace2_central
median:206num
fixed thresholds:204...208num
N_data plotted:73
[click plot for closeup]
Plot 2
scores: 7|
data source:vimos_ifu_score
(QC1 database)
dataset:trace2_central
median:200num
fixed thresholds:199...203num
N_data plotted:73
[click plot for closeup]
Plot 3
scores: 7|
data source:vimos_ifu_score
(QC1 database)
dataset:trace2_central
median:203num
fixed thresholds:201...205num
N_data plotted:73
[click plot for closeup]
Plot 4
scores: 7|
data source:vimos_ifu_score
(QC1 database)
dataset:trace2_central
median:200num
fixed thresholds:198...202num
N_data plotted:73
[click plot for closeup]

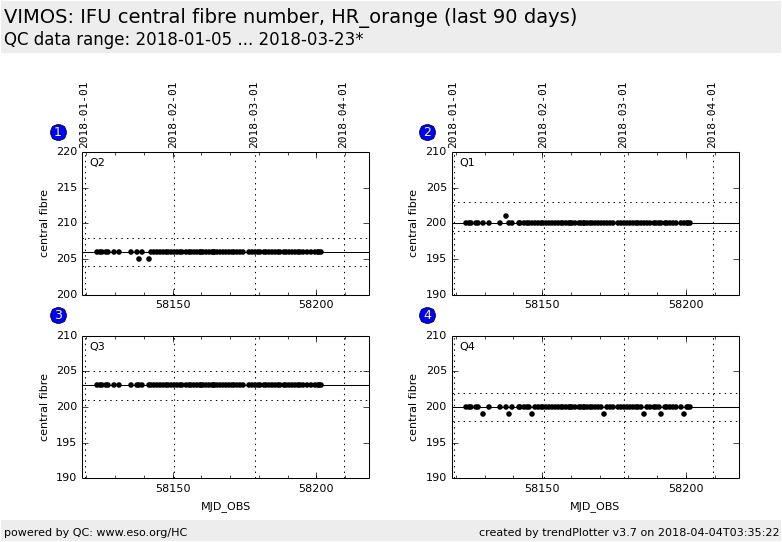

This plot

Trending plot for the central fibre in IFU calibrations.

The central fibre number should vary only by about +/- 2.

Setting HR_orange is usually measured daily; other settings only when science frames have been observed. For LR grisms, only data with IFU shutter OFF are plotted.

Template ID: ifu_cal_DayCalib (daytime Health Checks), ifu_cal_NightCalib (attached night-time). Pipeline recipe: vmifucalib.


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
