Atmospheric Extinction (May 2004)

This page contains information about the May 2004 calculation of the atmospheric extinction coefficients. About 20 standard stars from the list of LCO (Persson et al. 1998) were observed during the nights of Apr 30 and May 1, 2004, spanning sec(z) from 1 to nearly 4. The measurements were done with the aperture photometry package apphot in IRAF. The linear fits take into account the errors along the Y-axis.

The preliminary analysis indicates that the atmospheric extinction coefficients for J, H and Ks, resp., are 0.07, 0.02, and 0.05, resp., with uncertainties of 0.02, 0.01, and 0.01. There are no notable color terms for the H and Ks bands. However, there is indication for some color dependence in the J band. The narrow color range of the observed standards doesn't allow us to obtain a more definitive answer.



Encapsulated Postscipt format



Encapsulated Postscipt format
Figure 1. Atmospheric extinction.

The measurements for the night of 2004-04-30/05-01 are shown on the top plot and for 2004-05-01/02 on the bottom. The numbers in the brackets are the error for the atmospheric extinction coefficient, the error for the zero point, the r.m.s., and the number of standard star measurements used in the fit.



Encapsulated Postscipt format



Encapsulated Postscipt format

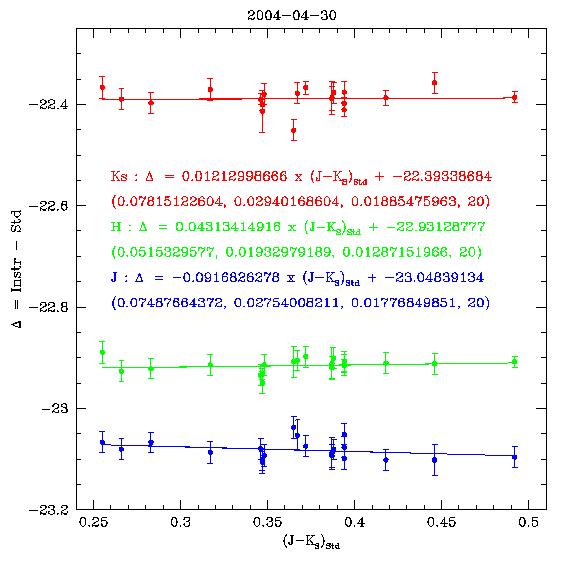

Figure 2. Check for colour terms.

The measurements for the night of 2004-04-30/05-01 are shown on the top plot and for 2004-05-01/02 on the bottom. The numbers in the brackets are the errors for the first and the second coefficients in the fit, the r.m.s., and the number of used standard star measurements.
