QC documentation system: QC procedure run_refpix.csh for MIDI

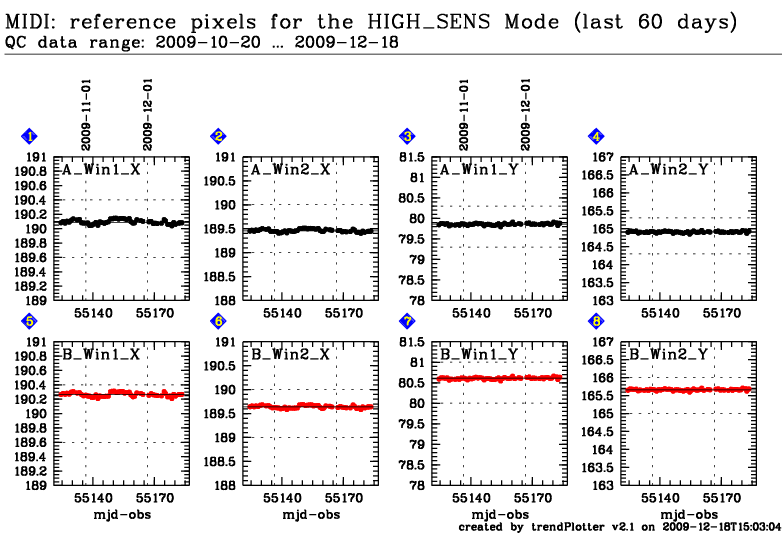

This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey).   HOME   CRIRES FORS2   FORS1 GIRAFFE UVES XSHOOTER   ISAAC VIMOS VISIR   HAWKI NACO SINFONI   AMBER MIDI   VIRCAM [best viewing with style sheets and javascript enabled] run_detron.csh run_detlin.csh run_dettrn.csh run_refpix.csh run_wave.csh run_kappa.csh run_data_quality_processQC.csh extractVis_dispersed.csh extractTF_dispersed.csh extractbinned_dispersed.csh plot_data_dispersed.csh midi_frg_hs_disp_display.csh midi_frg_sp_disp_display.csh   bottom  plots   |   contact NAME run_detron.csh VERSION 1.0 -- 12-06 implement docu SYNTAX SHELL CALL processQC -a abname or . ~/Isabelle/SCRIPTS/MeasureQuality/run_data_quality_processQC.csh $RAW_TYPE $DATE $PF . ~/Isabelle/SCRIPTS/MeasureQuality/run_refpix.csh INSTRUMENT MIDI RAWTYPE CAL_REFPIX PURPOSE extracting values for the reference pixels in all the modes (SCI_PHOT/HIGH_SENS/OPEN) PROCINPUT products under CAL_REFPIX QC1TABLE trending | table(s) in QC1 database: midi_refpix TRENDPLOT trending | HealthCheck plot(s) associated to this procedure: trend_report_REFPIX_HS_HC.html QC1PAGE trending | associated documentation: MIDI_QC_tutorial_refpix.html QC1PLOTS top trend_report_REFPIX_HS_HC.png position of the reference pixels for the HIGH_SENS mode trend_report_REFPIX_SP_HC.png position of the reference pixels for the SCI_PHOT mode trend_report_REFPIX_OPEN_HC.png position of the reference pixels for the OPEN mode QC1PARAM QC1 parameters written into QC1 table: QC1db names: midi_refpix FITS key names: QC.PIX.OP.A/B.X/Y/SIZ : OPEN mode: X and Y coordinates iand size of the beam for beams A and B FITS key names: same for HS (HIGH_SENS) and SP (SCI_PHOT) modes QC1 params created by pipeline: all QC1 params created by this procedure: none ALGORITHM Description of algorithms: (param name): The reference pixel is monitored for both beams and the different instrument modes to insure proper beam overlap. The beams (A/B) position in the different windows (Interferometry : 1,2 and photometry: PA,PB) is measured for the settings OPEN, HIGH_SENS and SCI_PHOT CERTIF (guidelines for acceptance/rejection)The coordinates should stay at a constant level. If one beam move, the shift for the other beam should be identical.The values should match the value in the HC plots. COMMENTS Over a long period a slow slope exists top [2010-01-26T08:57:28]         created by qcDocu v1.1.2, a tqs tool
