QC documentation system: QC procedure run_wave.csh for MIDI

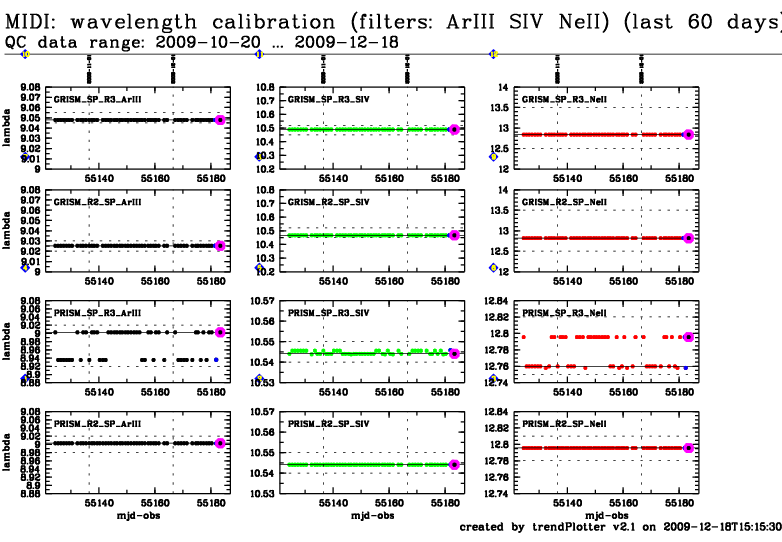

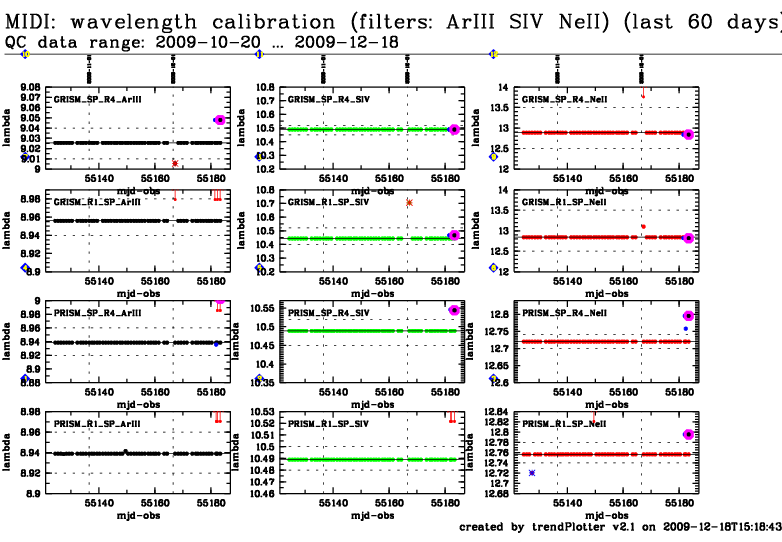

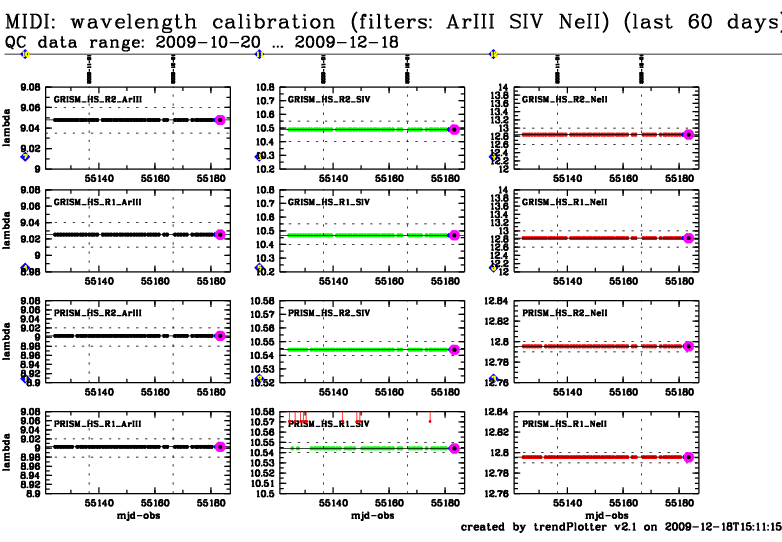

This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey).   HOME   CRIRES FORS2   FORS1 GIRAFFE UVES XSHOOTER   ISAAC VIMOS VISIR   HAWKI NACO SINFONI   AMBER MIDI   VIRCAM [best viewing with style sheets and javascript enabled] run_detron.csh run_detlin.csh run_dettrn.csh run_refpix.csh run_wave.csh run_kappa.csh run_data_quality_processQC.csh extractVis_dispersed.csh extractTF_dispersed.csh extractbinned_dispersed.csh plot_data_dispersed.csh midi_frg_hs_disp_display.csh midi_frg_sp_disp_display.csh   bottom  plots   |   contact NAME run_wave.csh VERSION 1.0 -- 12-06 implement docu SYNTAX SHELL CALL processQC -a abname or . ~/Isabelle/SCRIPTS/MeasureQuality/run_data_quality_processQC.csh $RAW_TYPE $DATE $PF . ~/Isabelle/SCRIPTS/MeasureQuality/run_wave.csh INSTRUMENT MIDI RAWTYPE CAL_WAVE PURPOSE extracting values for the wavelength calibration PROCINPUT products under CAL_WAVE QC1TABLE trending | table(s) in QC1 database: midi_wave TRENDPLOT trending | HealthCheck plot(s) associated to this procedure: trend_report_WAVECAL_HS_HC.html QC1PAGE trending | associated documentation: MIDI_QC_tutorial_wave.html QC1PLOTS top trend_report_WAVECAL_HS_HC.png Wavelength calibration for the HS mode trend_report_WAVECAL_SP_INTERF_HC.png Wavelength calibration for the SP mode, interferometry windows trend_report_WAVECAL_SP_PHOT_HC.png Wavelength calibration for the SP mode, photometry windows QC1PARAM QC1 parameters written into QC1 table: QC1db names: midi_wave FITS key names: QC.WCAL.CHx.Ry i where x is the spectral channel number 1 to 181 for PRISM and 1 to 271 for GRISM and where y is the detector window (1-2 for HIGH_SENS, 1-2-3-4 for SCI_PHOT) QC1 params created by pipeline: all QC1 params created by this procedure: none ALGORITHM Description of algorithms: different exposures are taken using the heated black screen through the 3 narrow band filters (ARIII, NeII, SIV) The fit of the lambda(X) function is performed. The value of the wavelength is given for the spectral channel corresponding to the expected central one. CERTIF (guidelines for acceptance/rejection): The value of the wavelength found for the spectral channel corresponding to the expected central one should be constant COMMENTS (any comments) top [2010-01-26T08:57:47]         created by qcDocu v1.1.2, a tqs tool
