MUSE trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-12-02T13:21:25 (UT)
  | now: 2024-12-02T14:30:42 (UT) muc09 QC pipeline: muse-2.8.8 (installed 2023-06-22)
same group: ARC_wavecal-N ARC_wavecal-E ARC_wavecal-NFM RESOL_det RESOL_temp ARC_fit-N ARC_fit-E ARC_fit-NFM ARC_flux
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
MUSE news:
Report news:
DATE*: [?] 2024-11-25
report | NLT
2024-11-26
report | NLT
2024-11-27
report | NLT
2024-11-28
report | NLT
2024-11-29
report | NLT
2024-11-30
report | NLT
2024-12-01
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw
P...
CAL product quality:
products products products products products products products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 74 NONE VAL73.,80. 49 slice24_fit_nlines this | last_yr | all averaged for slice24 in all IFUs
1 QC1DB none   NONE none  49 slice1_fit_nlines this | last_yr | all averaged for slice1 in all IFUs
2 QC1DB MEDIAN 74 NONE VAL73.,80. 49 slice24_fit_nlines this | last_yr | all averaged for slice24 in all IFUs
2 QC1DB none   NONE none  49 slice1_fit_nlines this | last_yr | all averaged for slice1 in all IFUs
3 QC1DB MEDIAN 0.027 A VAL0.02,0.035 49 slice24_fit_rms this | last_yr | all averaged for slice24 in all IFUs
3 QC1DB none   A none  49 slice1_fit_rms this | last_yr | all averaged for slice1 in all IFUs
4 QC1DB MEDIAN 0.027 ADU VAL0.02,0.035 49 slice24_fit_rms this | last_yr | all averaged for slice24 in all IFUs
4 QC1DB none   ADU none  49 slice1_fit_rms this | last_yr | all averaged for slice1 in all IFUs
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: multiple dataset, cannot be scored
data source:muse_wave
(QC1 database)
dataset:
(numbers below apply to this dataset)
slice24_fit_nlines
median:74NONE
fixed thresholds:73.0...80.0NONE
N_data plotted:49
[click plot for closeup]
Plot 2
scores: multiple dataset, cannot be scored
data source:muse_wave
(QC1 database)
dataset:
(numbers below apply to this dataset)
slice24_fit_nlines
median:74NONE
fixed thresholds:73.0...80.0NONE
N_data plotted:49
[click plot for closeup]
Plot 3
scores: multiple dataset, cannot be scored
data source:muse_wave
(QC1 database)
dataset:
(numbers below apply to this dataset)
slice24_fit_rms
median:0.027A
fixed thresholds:0.02...0.035A
N_data plotted:49
[click plot for closeup]
Plot 4
scores: multiple dataset, cannot be scored
data source:muse_wave
(QC1 database)
dataset:
(numbers below apply to this dataset)
slice24_fit_rms
median:0.027ADU
fixed thresholds:0.02...0.035ADU
N_data plotted:49
[click plot for closeup]
This plot

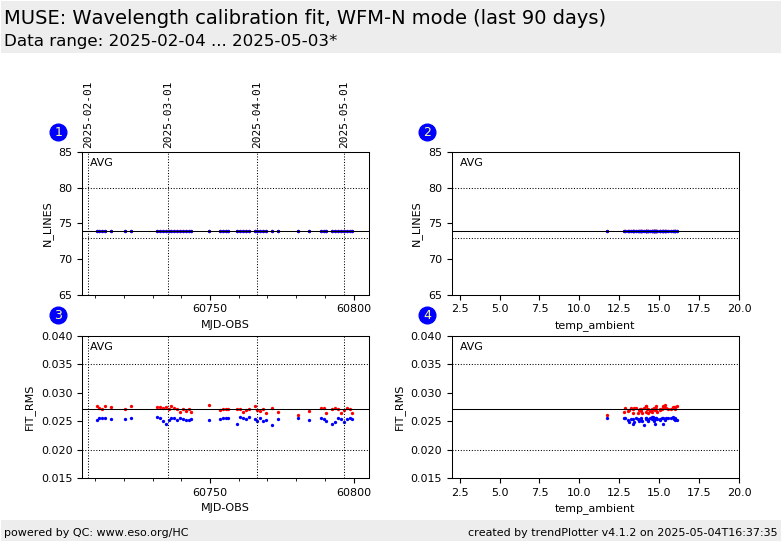

This is MUSE ARC_fit health check plot. The upper panels show the number of identified arc lines used in calibration solution fit in central slice24 (red dots) and border slice1 (blue dots), as a function of time (panels 1) and ambient temperature (panel 3). The lower panels plot the RMS value of the fit for slice24 and slice1 accordingly. Only data points determined from ARC calibrations taken in the instrumental mode (INS.MODE) WFM-NOAO-N and the read out mode (DET.READ.CURNAME) SCI1.0 were selected. The data for each slice are averaged across all detectors (CHANELs).

The ARC calibration data are taken with template TPL.ID=MUSE_wfm_cal_wave


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
