MUSE trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-12-07T16:39:02 (UT)
  | now: 2024-12-08T07:17:13 (UT) muc09 QC pipeline: muse-2.8.8 (installed 2023-06-22)
same group: ARC_wavecal-N ARC_wavecal-E ARC_wavecal-NFM RESOL_det RESOL_temp ARC_fit-N ARC_fit-E ARC_fit-NFM ARC_flux
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
MUSE news:
Report news:
DATE*: [?] 2024-12-01
report | NLT
2024-12-02
report | NLT
2024-12-03
report | NLT
2024-12-04
report | NLT
2024-12-05
report | NLT
2024-12-06
report | NLT
2024-12-07
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw
P...
CAL product quality:
products products products products products products products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 2.97e+03 NONE VAL2900.,3050. 50 slice24_resol this | last_yr | all WFM-NOAO: averaged for slice24 in all IFUs
1 QC1DB none   NONE none  50 slice1_resol this | last_yr | all WFM-NOAO: averaged for slice1 in all IFUs
2 QC1DB MEDIAN 95.8 NONE VAL70.,110. 50 slice24_resol this | last_yr | all WFM-NOAO: rms for slice24 in all IFUs
2 QC1DB none   NONE none  50 slice1_resol this | last_yr | all WFM-NOAO: rms for slice1 in all IFUs
3 QC1DB MEDIAN 2.97e+03 NONE VAL2950.,3050. 50 slice24_resol this | last_yr | all WFM-NOAO: averaged for slice24 in all IFUs
3 QC1DB none   NONE none  50 slice1_resol this | last_yr | all WFM-NOAO: averaged for slice1 in all IFUs
4 QC1DB MEDIAN 6.88e+03 A VAL6850.,6920. 50 slice24_wlen this | last_yr | all WFM-NOAO: averaged for slice24 in all IFUs
4 QC1DB none   A none  50 slice1_wlen this | last_yr | all WFM-NOAO: averaged for slice1 in all IFUs
5 oQC1DB MEDIAN 2.97e+03 NONE none  49 slice24_resol this | last_yr | all WFM-AO: averaged for slice24 in all IFUs
5 oQC1DB none   NONE none  49 slice1_resol this | last_yr | all WFM-AO: averaged for slice1 in all IFUs
6 oQC1DB MEDIAN 95.9 NONE none  49 slice24_resol this | last_yr | all WFM-AO: rms for slice24 in all IFUs
6 oQC1DB none   NONE none  49 slice1_resol this | last_yr | all WFM-AO: rms for slice1 in all IFUs
7 oQC1DB MEDIAN 2.97e+03 NONE none  49 slice24_resol this | last_yr | all WFM-AO: averaged for slice24 in all IFUs
7 oQC1DB none   NONE none  49 slice1_resol this | last_yr | all WFM-AO: averaged for slice1 in all IFUs
8 oQC1DB MEDIAN 6.88e+03 A none  49 slice24_wlen this | last_yr | all WFM-AO: averaged for slice24 in all IFUs
8 oQC1DB none   A none  49 slice1_wlen this | last_yr | all WFM-AO: averaged for slice1 in all IFUs
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: multiple dataset, cannot be scored
data source:muse_wave
(QC1 database)
dataset:
(numbers below apply to this dataset)
slice24_resol
median:2.97e+03NONE
fixed thresholds:2900.0...3050.0NONE
N_data plotted:50
[click plot for closeup]
Plot 2
scores: multiple dataset, cannot be scored
data source:muse_wave
(QC1 database)
dataset:
(numbers below apply to this dataset)
slice24_resol
median:95.8NONE
fixed thresholds:70.0...110.0NONE
N_data plotted:50
[click plot for closeup]
Plot 3
scores: multiple dataset, cannot be scored
data source:muse_wave
(QC1 database)
dataset:
(numbers below apply to this dataset)
slice24_resol
median:2.97e+03NONE
fixed thresholds:2950.0...3050.0NONE
N_data plotted:50
[click plot for closeup]
Plot 4
scores: multiple dataset, cannot be scored
data source:muse_wave
(QC1 database)
dataset:
(numbers below apply to this dataset)
slice24_wlen
median:6.88e+03A
fixed thresholds:6850.0...6920.0A
N_data plotted:50
[click plot for closeup]
Plot 5
scores: not implemented
data source:muse_wave
(QC1 database)
dataset:
(numbers below apply to this dataset)
slice24_resolo
median:2.97e+03NONE
thresholds:none
N_data plotted:49
[click plot for closeup]
Plot 6
scores: not implemented
data source:muse_wave
(QC1 database)
dataset:
(numbers below apply to this dataset)
slice24_resolo
median:95.9NONE
thresholds:none
N_data plotted:49
[click plot for closeup]
Plot 7
scores: not implemented
data source:muse_wave
(QC1 database)
dataset:
(numbers below apply to this dataset)
slice24_resolo
median:2.97e+03NONE
thresholds:none
N_data plotted:49
[click plot for closeup]
Plot 8
scores: not implemented
data source:muse_wave
(QC1 database)
dataset:
(numbers below apply to this dataset)
slice24_wleno
median:6.88e+03A
thresholds:none
N_data plotted:49
[click plot for closeup]
This plot

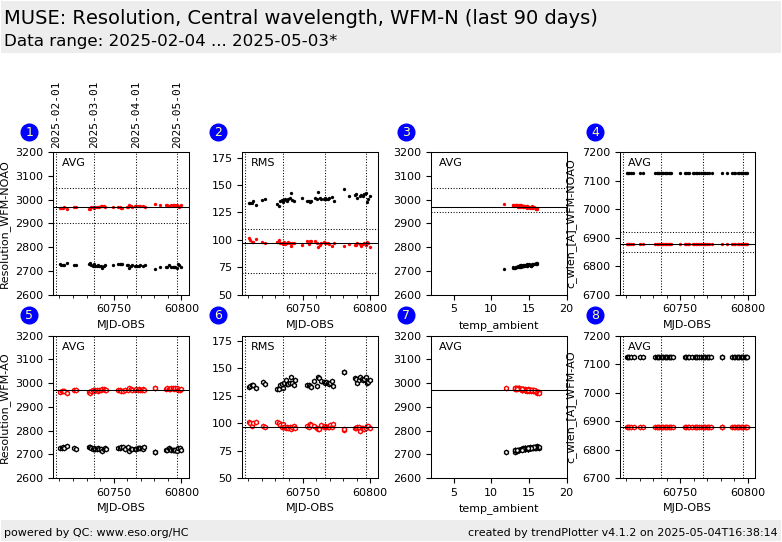

This is MUSE ARC_wavecal health check plot. It shows resolution and central wavelength determined from daily wavelenght calibration as a function of time (panels 1, 2, 4, 5, 6, 8) and ambient temperature (panels 3, 7) for WFM-NOAO-N (upper panels, filled circles) and WFM-AO-N (lower panels, open circles) instrument modes (INS.MODE). The data points correspond to resolution in central slice24 (red dots) and border slice1 (black dots), averaged across all detectors (CHANELs). Panels 4, 8 show wavelength associated to the central pixel 2056, as above, for slices 1 and 24. For the plot, only ARC calibrations taken in the read out mode (DET.READ.CURNAME) SCI1.0 are selected.

The ARC calibration data are taken with template TPL.ID=MUSE_wfm_cal_wave


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
