This plot

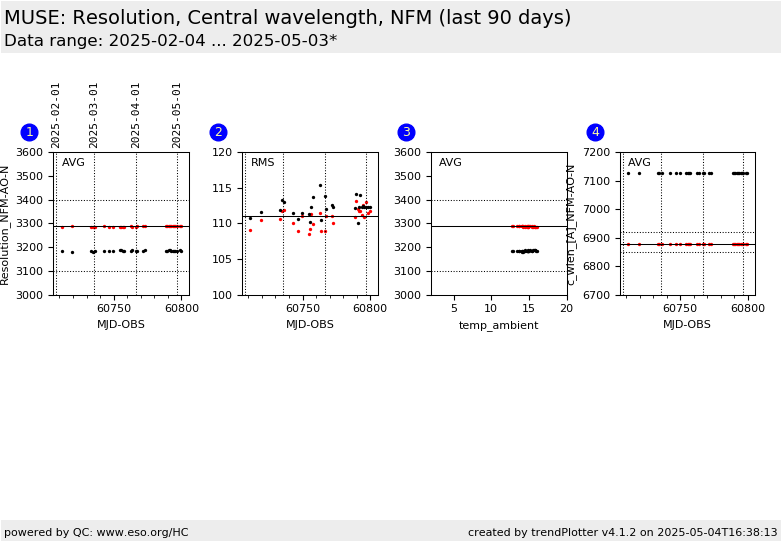

This is MUSE ARC_wavecal health check plot for the NFM-AO-N instrument mode. It shows resolution and central wavelength determined from daily wavelenght calibration as a function of time (panels 1, 2, 4) and as a function of ambient temperature (panels 3). The data points correspond to resolution in central slice24 (red dots) and border slice1 (black dots), averaged across all detectors (CHANELs). Panel 4 shows wavelength associated to the central pixel 2056 for slices 1 and 24. Only ARC calibrations taken in the read out mode (DET.READ.CURNAME) SCI1.0 are selected for this plot.

The ARC calibration data are taken with template TPL.ID=MUSE_nfm_cal_wave


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
