XSHOOTER trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-04-19T22:37:14 (UT)
  | now: 2024-04-19T23:48:09 (UT) muc02 QC pipeline: xshoo-3.6.5a (installed 2023-09-18)
same group: number_identified gaps fmt_resid order_resid 2d_resid
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
XSHOOTER news:
Report news:
DATE*: [?] 2024-04-12
report | NLT 		2024-04-13
no data | NLT 		2024-04-14
report | NLT 		2024-04-15
report | NLT 		2024-04-16
report | NLT 		2024-04-17
report | NLT 		2024-04-18
report | NLT 		2024-04-19
no data | NLT
r...
Raw CAL displays:
raw no CAL raw files raw raw raw raw raw no CAL raw files
P...
CAL product quality:
products no CAL products products products products products products no CAL products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...               [?] 		*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 •QC1DB MEDIAN -0.401 pixel VAL-5,0 89 fit_resx_min this | last_yr | all minimum residual in X
2 •QC1DB MEDIAN 0.495 pixel VAL0,2.5 89 fit_resx_max this | last_yr | all maximum residual in X
3 •QC1DB MEDIAN 0.0644 pixel VAL0,0.3 89 fit_resx_rms this | last_yr | all rms of residuals in X
4 •QC1DB MEDIAN 0.00381 pixel OFF± 0.01 89 fit_resx_med this | last_yr | all med of residuals in X
5 •QC1DB MEDIAN -6.1 pixel VAL-7,0 89 fit_resy_min this | last_yr | all minimum residual in Y
6 •QC1DB MEDIAN 3.32 pixel VAL0,7 89 fit_resy_max this | last_yr | all maximum residual in Y
7 •QC1DB MEDIAN 0.251 pixel VAL0,0.6 89 fit_resy_rms this | last_yr | all rms of residuals in Y
8 •QC1DB MEDIAN 0.00334 pixel OFF± 0.02 89 fit_resy_med this | last_yr | all med of residuals in Y
*Data sources: QC1DB: QC1 database; LOCAL: local data source

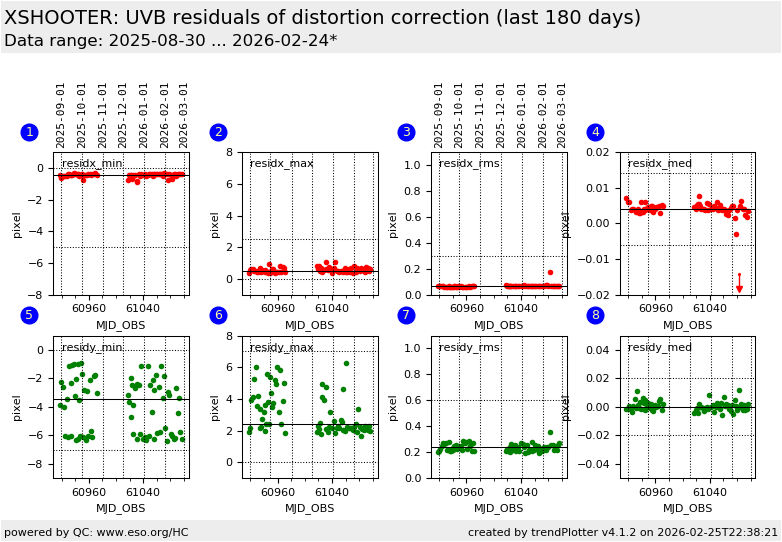

Plot 1
scores: not implemented
data source:xshooter_2dmap
(QC1 database)
dataset:fit_resx_min•
median:-0.401pixel
fixed thresholds:-5...0pixel
N_data plotted:89
[click plot for closeup]
Plot 2
scores: not implemented
data source:xshooter_2dmap
(QC1 database)
dataset:fit_resx_max•
median:0.495pixel
fixed thresholds:0...2.5pixel
N_data plotted:89
[click plot for closeup]
Plot 3
scores: 5|
data source:xshooter_2dmap
(QC1 database)
dataset:fit_resx_rms•
median:0.0644pixel
fixed thresholds:0...0.3pixel
N_data plotted:89
[click plot for closeup]
Plot 4
scores: not implemented
data source:xshooter_2dmap
(QC1 database)
dataset:fit_resx_med•
median:0.00381pixel
rel. thresholds: -0.006188...0.013812pixel
N_data plotted:89
[click plot for closeup]
Plot 5
scores: not implemented
data source:xshooter_2dmap
(QC1 database)
dataset:fit_resy_min•
median:-6.1pixel
fixed thresholds:-7...0pixel
N_data plotted:89
[click plot for closeup]
Plot 6
scores: not implemented
data source:xshooter_2dmap
(QC1 database)
dataset:fit_resy_max•
median:3.32pixel
fixed thresholds:0...7pixel
N_data plotted:89
[click plot for closeup]
Plot 7
scores: no current data
data source:xshooter_2dmap
(QC1 database)
dataset:fit_resy_rms•
median:0.251pixel
fixed thresholds:0...0.6pixel
N_data plotted:89
[click plot for closeup]
Plot 8
scores: not implemented
data source:xshooter_2dmap
(QC1 database)
dataset:fit_resy_med•
median:0.00334pixel
rel. thresholds: -0.016656...0.023344pixel
N_data plotted:89
[click plot for closeup]
This plot

This plot shows the residuals of the lines in 2DMAP (9-pinhole arc) data after the annealing of the physical model. residx/y_min/max may be large due to single outliers and are therefore not scored. More information can be found in the plot tutorial page.

General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
