XSHOOTER trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-10-03T22:39:25 (UT)
  | now: 2024-10-04T09:26:00 (UT) muc02 QC pipeline: xshoo-3.6.5a (installed 2023-09-18)
same group: x_time y_time x_temp y_temp
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
XSHOOTER news:
Report news:
DATE*: [?] 2024-09-27
report | NLT
2024-09-28
report | NLT
2024-09-29
report | NLT
2024-09-30
report | NLT
2024-10-01
report | NLT
2024-10-02
report | NLT
2024-10-03
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw
P...
CAL product quality:
products products products products products products products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...               [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 461 pixel none  97 x_ul this | last_yr | all x-position of line at 567.3836 nm (upper left)
2 QC1DB MEDIAN 1.8e+03 pixel none  97 x_ur this | last_yr | all x-position of line at 1033.2744 nm (upper right)
3 QC1DB MEDIAN 442 pixel none  97 x_ll this | last_yr | all x-position of line at 561.2068 nm (lower left)
4 QC1DB MEDIAN 1.69e+03 pixel none  97 x_lr this | last_yr | all x-position of line at 933.4764 nm (lower right)
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: not implemented
data source:xshooter_format
(QC1 database)
dataset:x_ul
median:461pixel
thresholds:none
N_data plotted:97
[click plot for closeup]
Plot 3
scores: not implemented
data source:xshooter_format
(QC1 database)
dataset:x_ll
median:442pixel
thresholds:none
N_data plotted:97
[click plot for closeup]
Plot 2
scores: not implemented
data source:xshooter_format
(QC1 database)
dataset:x_ur
median:1.8e+03pixel
thresholds:none
N_data plotted:97
[click plot for closeup]
Plot 4
scores: not implemented
data source:xshooter_format
(QC1 database)
dataset:x_lr
median:1.69e+03pixel
thresholds:none
N_data plotted:97
[click plot for closeup]
This plot

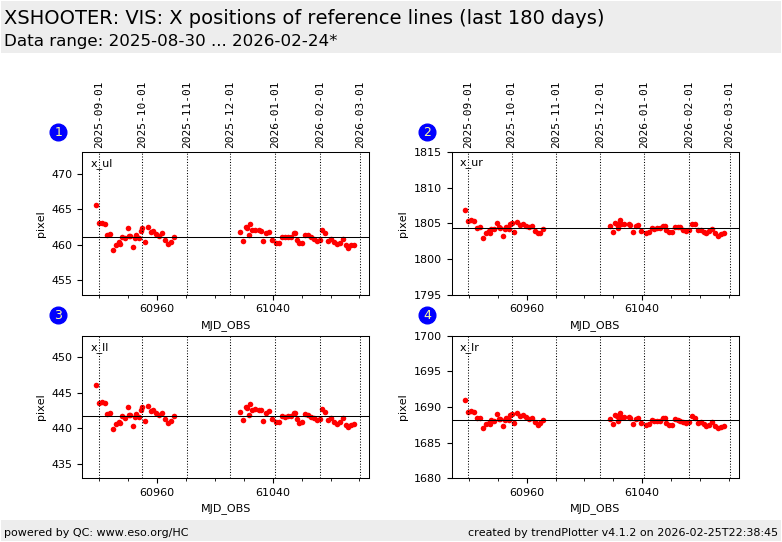

This plot shows the x-positions of 4 reference lines in the FMTCHK frame (coordinates refer to the PRE format, in which all arms follow the VIS orientation).


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
