XSHOOTER trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2022-10-01T22:37:30 (UT)
  | now: 2022-10-02T02:29:11 (UT) muc02 QC pipeline: xshoo-3.6.0 (installed 2022-03-21)
same group: number_identified gaps fmt_resid order_resid 2d_resid
General news:
XSHOOTER news:
Report news:
DATE*: [?] 2022-09-25
report | NLT
2022-09-26
report | NLT
2022-09-27
report | NLT
2022-09-28
report | NLT
2022-09-29
report | NLT
2022-09-30
report | NLT
2022-10-01
no data | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw no CAL raw files
P...
CAL product quality:
products products products products products products no CAL products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...               [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN -0.46 pixel VAL-0.6,0 81 resid_min this | last_yr | all minimum residual
2 QC1DB MEDIAN 0.46 pixel VAL0,0.6 81 resid_max this | last_yr | all maximum residual
3 QC1DB MEDIAN 0.0295 pixel VAL0,0.04 81 resid_rms this | last_yr | all rms of residuals
4 QC1DB MEDIAN -0.059 pixel VAL-0.2,0. 81 resel_min this | last_yr | all minimum residual (after clipping)
5 QC1DB MEDIAN 0.059 pixel VAL0,0.2 81 resel_max this | last_yr | all maximum residual (after clipping)
6 QC1DB MEDIAN 0.0178 pixel VAL0,0.035 81 resel_rms this | last_yr | all rms of residuals (after clipping)
*Data sources: QC1DB: QC1 database; LOCAL: local data source

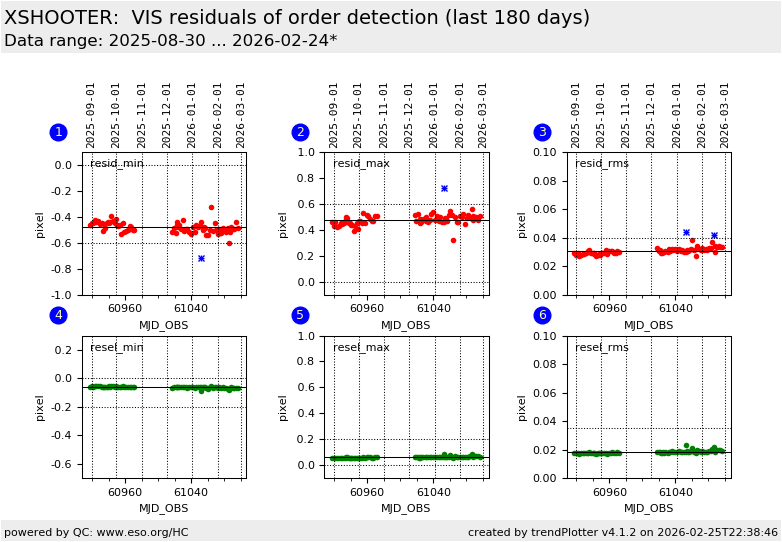

Plot 1
scores: 6|
data source:xshooter_order
(QC1 database)
dataset:resid_min
median:-0.46pixel
fixed thresholds:-0.6...0pixel
N_data plotted:81
[click plot for closeup]
Plot 2
scores: 6|
data source:xshooter_order
(QC1 database)
dataset:resid_max
median:0.46pixel
fixed thresholds:0...0.6pixel
N_data plotted:81
[click plot for closeup]
Plot 3
scores: 6|
data source:xshooter_order
(QC1 database)
dataset:resid_rms
median:0.0295pixel
fixed thresholds:0...0.04pixel
N_data plotted:81
[click plot for closeup]
Plot 4
scores: 6|
data source:xshooter_order
(QC1 database)
dataset:resel_min
median:-0.059pixel
fixed thresholds:-0.2...0.0pixel
N_data plotted:81
[click plot for closeup]
Plot 5
scores: 6|
data source:xshooter_order
(QC1 database)
dataset:resel_max
median:0.059pixel
fixed thresholds:0...0.2pixel
N_data plotted:81
[click plot for closeup]
Plot 6
scores: 6|
data source:xshooter_order
(QC1 database)
dataset:resel_rms
median:0.0178pixel
fixed thresholds:0...0.035pixel
N_data plotted:81
[click plot for closeup]
This plot

This plot shows the residuals of the ORDERDEF (1-pinhole flat) data after the fitting. More information can be found in the plot tutorial page.


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
