ISAAC trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2013-12-16T10:04:23 (UT)
  | now: 2024-03-29T05:23:56 (UT) muc03 QC pipeline: isaac-6.1.3 (installed 2013-04-15)
same group: SW_Offset SW_Disp SW_RESPOW SW_ArcLamps SW_XCORR LW_Offset LW_Disp LW_ResPow   DISP(LAM) RESP(LAM)
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
ISAAC news: 2013-12-16: due to ISAAC decommissioning, refreshing of the health checks disabled
Report news:
DATE*: [?] 2013-12-09
report | NLT
2013-12-10
report | NLT
2013-12-11
report | NLT
2013-12-12
report | NLT
2013-12-13
no data | NLT
2013-12-14
no data | NLT
2013-12-15
no data | NLT
P...
Product quality:
products products products products no products no products no products
  last OPSLOG data:
2013-12-11*

last files ...
[an error occurred while processing this directive]
monitor

scores&comments | history ... | plot tutorial ... | contact               [?]
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
  • 2007-04-03: migrated to trendPlotter
Plot
?
Symb
?
Source
*
OPS?
**
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB yes (0) MEDIAN 2.45 ADU none  7 qc_dispco2 this | last_yr | all dispersion in Ang/pixel for SW, LR, SZ, argon lamp
2 QC1DB yes (0) MEDIAN   ADU none  0 qc_dispco2 this | last_yr | all dispersion in Ang/pixel for SW, LR, J, argon lamp
2 xQC1DB yes (0) MEDIAN 3.52 ADU none  15 qc_dispco2 this | last_yr | all dispersion in Ang/pixel for SW, LR, J, xenon lamp
3 QC1DB yes (0) MEDIAN   ADU none  0 qc_dispco2 this | last_yr | all dispersion in Ang/pixel for SW, LR, SH, argon lamp
3 xQC1DB yes (0) MEDIAN   ADU none  0 qc_dispco2 this | last_yr | all dispersion in Ang/pixel for SW, LR, SH, xenon lamp
4 QC1DB yes (0) MEDIAN   ADU none  0 qc_dispco2 this | last_yr | all dispersion in Ang/pixel for SW, LR, SK, argon lamp
4 xQC1DB yes (0) MEDIAN   ADU none  0 qc_dispco2 this | last_yr | all dispersion in Ang/pixel for SW, LR, SK, xenon lamp
5 QC1DB yes (0) MEDIAN 0.594 ADU none  12 qc_dispco2 this | last_yr | all dispersion in Ang/pixel for SW, MR, SH, argon and xenon lamp
6 QC1DB yes (0) MEDIAN 0.584 ADU none  11 qc_dispco2 this | last_yr | all dispersion in Ang/pixel for SW, MR, J, argon and xenon lamp
7 QC1DB yes (0) MEDIAN 0.753 ADU none  9 qc_dispco2 this | last_yr | all dispersion in Ang/pixel for SW, MR, SH, argon and xenon lamp
8 QC1DB yes (0) MEDIAN 1.22 ADU none  20 qc_dispco2 this | last_yr | all dispersion in Ang/pixel for SW, MR, SK, argon and xenon lamp
*Data sources: QC1DB: QC1 database; LOCAL: local text file | **OPS: OPSLOG data are included
Plot 1
scores: no current data
data source:isaac_arc
(QC1 database)
dataset:qc_dispco2
median:2.45ADU
thresholds:none
N_data plotted:7
[click on plot for closeup]
Plot 2
scores: not implemented
data source:isaac_arc
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_dispco2
median:no dataADU
thresholds:none
N_data plotted:0
[click on plot for closeup]
Plot 3
scores: not implemented
data source:isaac_arc
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_dispco2
median:no dataADU
thresholds:none
N_data plotted:0
[click on plot for closeup]
Plot 4
scores: not implemented
data source:isaac_arc
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_dispco2
median:no dataADU
thresholds:none
N_data plotted:0
[click on plot for closeup]
Plot 5
scores: no current data
data source:isaac_arc
(QC1 database)
dataset:qc_dispco2
median:0.594ADU
thresholds:none
N_data plotted:12
[click on plot for closeup]
Plot 6
scores: no current data
data source:isaac_arc
(QC1 database)
dataset:qc_dispco2
median:0.584ADU
thresholds:none
N_data plotted:11
[click on plot for closeup]
Plot 7
scores: no current data
data source:isaac_arc
(QC1 database)
dataset:qc_dispco2
median:0.753ADU
thresholds:none
N_data plotted:9
[click on plot for closeup]
Plot 8
scores: no current data
data source:isaac_arc
(QC1 database)
dataset:qc_dispco2
median:1.22ADU
thresholds:none
N_data plotted:20
[click on plot for closeup]

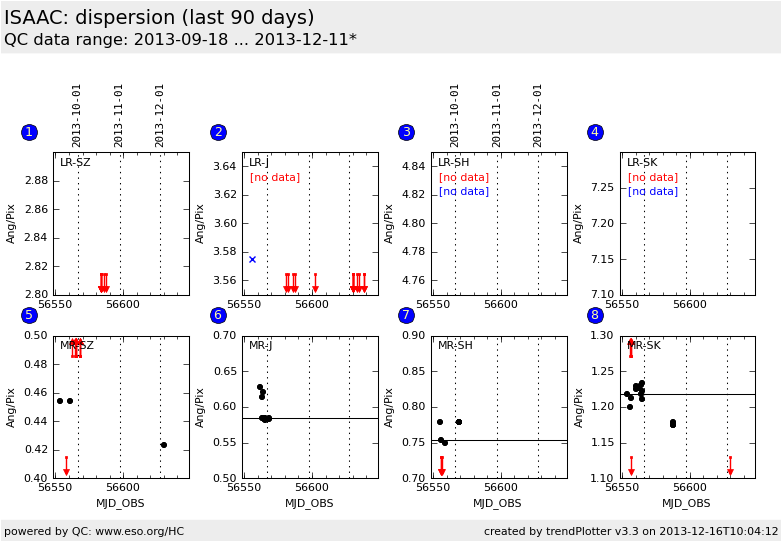

This plot

This is the trending plot for the ISAAC arc lamp calibrations of the SW-arm

The QC parameter is the dispersion as derived from the wavelength solution of the pipeline recipe (HIERARCH ESO QC DISPC02) . The parameter is given in ang/pixel units.

These plots describe:
1. Dispersion for SW-arm, LR-grating, SZ-filter. Only Argon lamp used.Bb> 2. Dispersion for SW-arm, LR-grating, J-filter. Argon (red diamont) and Xenon (blue cross).
3. Dispersion for SW-arm, LR-grating, SH-filter. Argon (red diamont) and Xenon (blue cross).
4. Dispersion for SW-arm, LR-grating, SK-filter. Argon (red diamont) and Xenon (blue cross).

5. Dispersion for SW-arm, MR-grating, SZ-filter. Both Argon and Xenon lamps are on.
6. Dispersion for SW-arm, MR-grating, J-filter. Both Argon and Xenon lamps are on.
7. Dispersion for SW-arm, MR-grating, SH-filter. Both Argon and Xenon lamps are on.
8. Dispersion for SW-arm, MR-grating, SK-filter. Both Argon and Xenon lamps are on.

The color coding is: red for Argon alone lamp exposure, blue for Xenon alone lamp exposure and black for Argon+Xenon lamp exposure. For the LR grating there is for each lamp one dedicated exposure. For the MR grating there is one exposure showing the mixed spectrum of both lamps.

Find more information about ISAAC QC parameters derived from twilight flats here.




General information

Click on any of the plots to see a close-up version.

If applicable, the latest values from Paranal ops logs are plotted as blue dots. More information about those values, including a download option, is available in the OPS column.

The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
