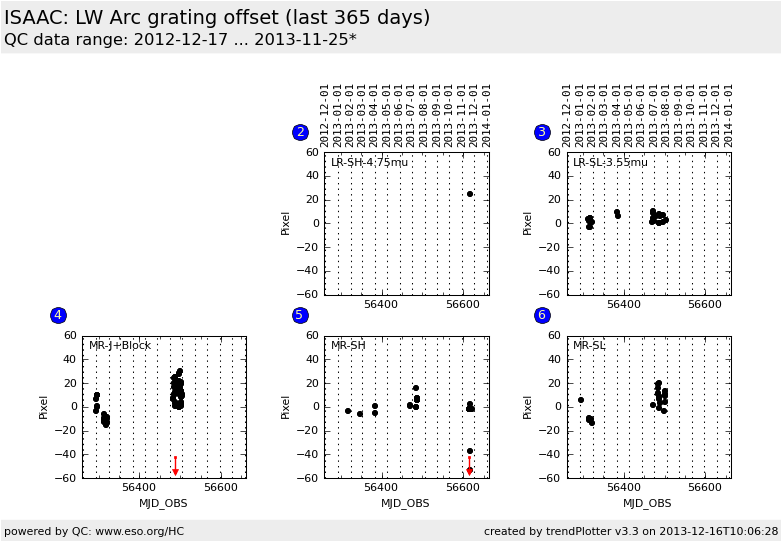

This is the trending plot for the ISAAC arc lamp calibrations of the LW-arm
The QC parameter is the offset between the nominal central wavelength
(read from the fits header INS.GRAT.WLEN) and the central wavelength derived
from the wavelength solution of the pipeline recipe (HIERARCH ESO QC WLEN) . The offset is given in
pixel units. For all setups in the LW-arm: Both Argon and Xenon lamps are on.
These plots describe:
2. Offset for LW-arm, LR-grating, SH-filter.
3. Offset for LW-arm, LR-grating, SL-filter.
4. Offset for LW-arm, MR-grating, J+Block-filter.
5. Offset for LW-arm, MR-grating, SH-filter.
6. Offset for LW-arm, MR-grating, SL-filter..
Find more information about ISAAC QC parameters derived from arc frames
here.
General information
Click on any of the plots to see a close-up version.
If applicable, the latest values from Paranal ops logs are plotted as blue dots. More information about those values, including a download option, is available in the OPS column.
The latest date is indicated on top of the plot, data points belonging to that date are specially marked.
If configured,
- statistical averages are indicated by a solid line, and thresholds by broken lines
- outliers are marked by a red asterisk. They are defined as data points outside the
threshold lines
- "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
- you can download the data for each parameter set if the 'Data downloads' link shows up
|
