VIMOS trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2014-08-01T03:31:59 (UT)
  | now: 2014-08-01T03:51:03 (UT) muc03 QC pipeline: vimos-2.9.13 (installed 2014-03-19)
same group: UB VR Iz
General news:
VIMOS news:
Report news:
DATE*: [?] 2014-07-25
report | NLT
2014-07-26
report | NLT
2014-07-27
report | NLT
2014-07-28
report | NLT
2014-07-29
report | NLT
2014-07-30
report | NLT
2014-07-31
report | NLT
P...
Product quality:
products products products products products products products
  no OPSLOG data

scores&comments | FULL | history ... | plot tutorial ... | contact               [?]
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
OPS?
**
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB no none   ADU/s VAL30,80 16 efficiency this | last_yr | all lamp and filter performance Q2, U filter
2 QC1DB no none   ADU/s VAL40,90 16 efficiency this | last_yr | all lamp and filter performance Q1, U filter
3 QC1DB no none   ADU/s VAL5000,10000 17 efficiency this | last_yr | all lamp and filter performance Q2, B filter
4 QC1DB no none   ADU/s VAL5000,10000 17 efficiency this | last_yr | all lamp and filter performance Q1, B filter
5 QC1DB no none   ADU/s VAL30,80 16 efficiency this | last_yr | all lamp and filter performance Q3, U filter
6 QC1DB no none   ADU/s VAL50,100 16 efficiency this | last_yr | all lamp and filter performance Q4, U filter
7 QC1DB no none   ADU/s VAL3000,7000 17 efficiency this | last_yr | all lamp and filter performance Q3, B filter
8 QC1DB no none   ADU/s VAL5000,10000 17 efficiency this | last_yr | all lamp and filter performance Q4, B filter
*Data sources: QC1DB: QC1 database; LOCAL: local text file | **OPS: OPSLOG data are included
Plot 1
scores: 2|
data source:vimos_scrflat
(QC1 database)
dataset:efficiency
average:none
fixed thresholds:30...80ADU/s
N_data plotted:16
[click on plot for closeup]
Plot 2
scores: 2|
data source:vimos_scrflat
(QC1 database)
dataset:efficiency
average:none
fixed thresholds:40...90ADU/s
N_data plotted:16
[click on plot for closeup]
Plot 3
scores: 2|
data source:vimos_scrflat
(QC1 database)
dataset:efficiency
average:none
fixed thresholds:5000...10000ADU/s
N_data plotted:17
[click on plot for closeup]
Plot 4
scores: 2|
data source:vimos_scrflat
(QC1 database)
dataset:efficiency
average:none
fixed thresholds:5000...10000ADU/s
N_data plotted:17
[click on plot for closeup]
Plot 5
scores: 2|
data source:vimos_scrflat
(QC1 database)
dataset:efficiency
average:none
fixed thresholds:30...80ADU/s
N_data plotted:16
[click on plot for closeup]
Plot 6
scores: 2|
data source:vimos_scrflat
(QC1 database)
dataset:efficiency
average:none
fixed thresholds:50...100ADU/s
N_data plotted:16
[click on plot for closeup]
Plot 7
scores: 2|
data source:vimos_scrflat
(QC1 database)
dataset:efficiency
average:none
fixed thresholds:3000...7000ADU/s
N_data plotted:17
[click on plot for closeup]
Plot 8
scores: 2|
data source:vimos_scrflat
(QC1 database)
dataset:efficiency
average:none
fixed thresholds:5000...10000ADU/s
N_data plotted:17
[click on plot for closeup]

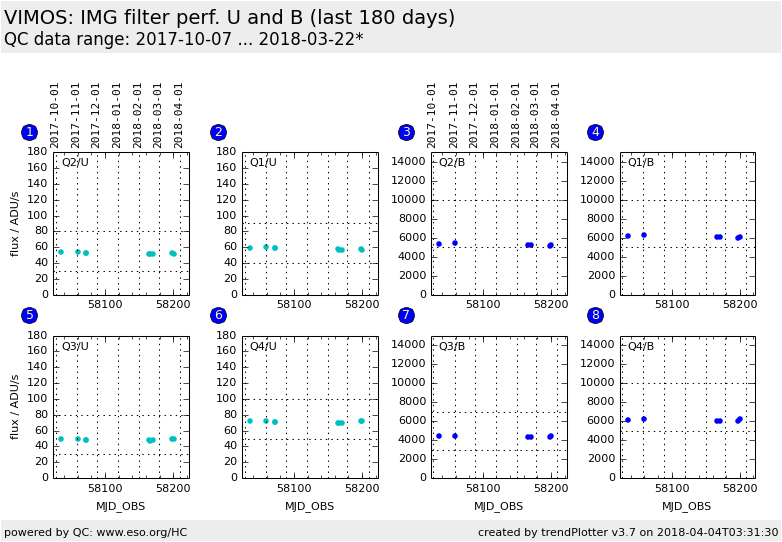

This plot

Trending plot for performance of IMG filters and flat field lamps.

There are two continuum lamps for VIMOS: QTH10 and QTH50. QTH10 is used for screen flats with VRIz, QTH50 for screen flats with U and B.

Template ID: img_cal_ScreenFlat. Pipeline recipe: vmimflatscreen.


General information

Click on any of the plots to see a close-up version. The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
