VIMOS trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2014-09-17T03:37:06 (UT)
  | now: 2014-09-17T06:52:31 (UT) muc03 QC pipeline: vimos-2.9.13 (installed 2014-03-19)
same group: LR_blue LR_red MR HR_blue HR_orange HR_red
General news:
VIMOS news:
Report news:
DATE*: [?] 2014-09-10
no data | NLT
2014-09-11
no data | NLT
2014-09-12
no data | NLT
2014-09-13
no data | NLT
2014-09-14
no data | NLT
2014-09-15
no data | NLT
2014-09-16
no data | NLT
P...
Product quality:
no products no products no products no products no products no products no products
  last OPSLOG data:
2014-09-01*

last files ...
monitor

scores&comments | history ... | plot tutorial ... | contact                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
OPS?
**
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB yes (1) MEDIAN 206 num VAL204,208 77 trace2_central this | last_yr | all Q2, central fibre number
2 QC1DB yes (1) MEDIAN 201 num VAL199,203 77 trace2_central this | last_yr | all Q1, central fibre number
3 QC1DB yes (1) MEDIAN 204 num VAL201,205 77 trace2_central this | last_yr | all Q3, central fibre number
4 QC1DB yes (1) MEDIAN 200 num VAL198,202 77 trace2_central this | last_yr | all Q4, central fibre number
*Data sources: QC1DB: QC1 database; LOCAL: local text file | **OPS: OPSLOG data are included
Plot 1
scores: 6|
data source:vimos_ifu_score
(QC1 database)
dataset:trace2_central
median:206num
fixed thresholds:204...208num
N_data plotted:77
[click on plot for closeup]
Plot 2
scores: 6|
data source:vimos_ifu_score
(QC1 database)
dataset:trace2_central
median:201num
fixed thresholds:199...203num
N_data plotted:77
[click on plot for closeup]
Plot 3
scores: 6|
data source:vimos_ifu_score
(QC1 database)
dataset:trace2_central
median:204num
fixed thresholds:201...205num
N_data plotted:77
[click on plot for closeup]
Plot 4
scores: 6|
data source:vimos_ifu_score
(QC1 database)
dataset:trace2_central
median:200num
fixed thresholds:198...202num
N_data plotted:77
[click on plot for closeup]
This plot

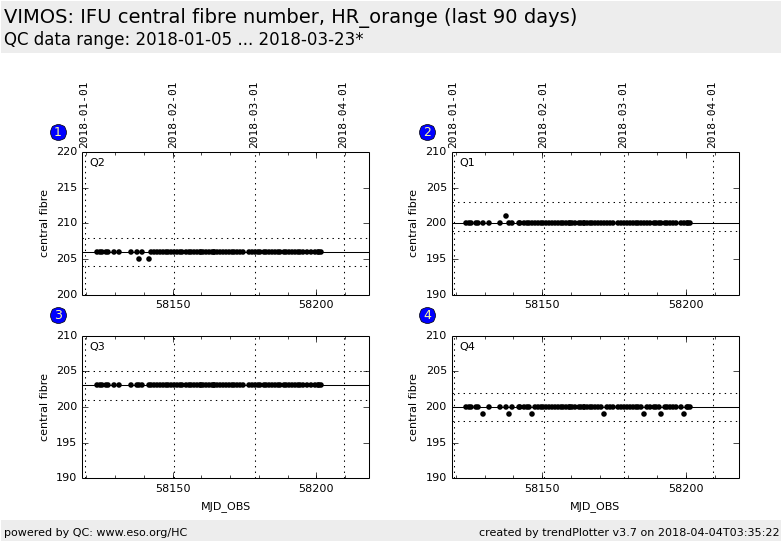

Trending plot for the central fibre in IFU calibrations.

The central fibre number should vary only by about +/- 2.

Setting HR_orange is usually measured daily; other settings only when science frames have been observed. For LR grisms, only data with IFU shutter OFF are plotted.

Template ID: ifu_cal_DayCalib (daytime Health Checks), ifu_cal_NightCalib (attached night-time). Pipeline recipe: vmifucalib.


General information

Click on any of the plots to see a close-up version.

If applicable, the latest values from Paranal ops logs are plotted as blue dots. More information about those values, including a download option, is available in the OPS column.

The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
