VIMOS trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2014-09-01T09:12:41 (UT)
  | now: 2014-09-01T14:38:43 (UT) muc03 QC pipeline: vimos-2.9.13 (installed 2014-03-19)
same group: LR_blue LR_red MR HR_blue HR_orange HR_red
General news:
VIMOS news: Since 2014-8-27, several calibration files have not been archived on Paranal; the information in the HC plots is therefore incomplete
Report news:
DATE*: [?] 2014-08-25
report | NLT
2014-08-26
report | NLT
2014-08-27
report | NLT
2014-08-28
report | NLT
2014-08-29
report | NLT
2014-08-30
report | NLT
2014-08-31
report | NLT
P...
Product quality:
products products products products products products products
  last OPSLOG data:
2014-08-30*

last files ...
monitor

scores&comments | history ... | plot tutorial ... | contact                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
OPS?
**
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB yes (2) MEAN -1.18 pix VAL-10,10 85 trace2_slope this | last_yr | all Q2, IFU slope x 4096
2 QC1DB yes (2) MEAN 5.21 pix VAL-10,10 83 trace2_slope this | last_yr | all Q1, IFU slope x 4096
3 QC1DB yes (2) MEAN 4.57 pix VAL-10,10 86 trace2_slope this | last_yr | all Q3, IFU slope x 4096
4 QC1DB yes (2) MEAN -2.84 pix VAL-12,12 85 trace2_slope this | last_yr | all Q4, IFU slope x 4096
*Data sources: QC1DB: QC1 database; LOCAL: local text file | **OPS: OPSLOG data are included

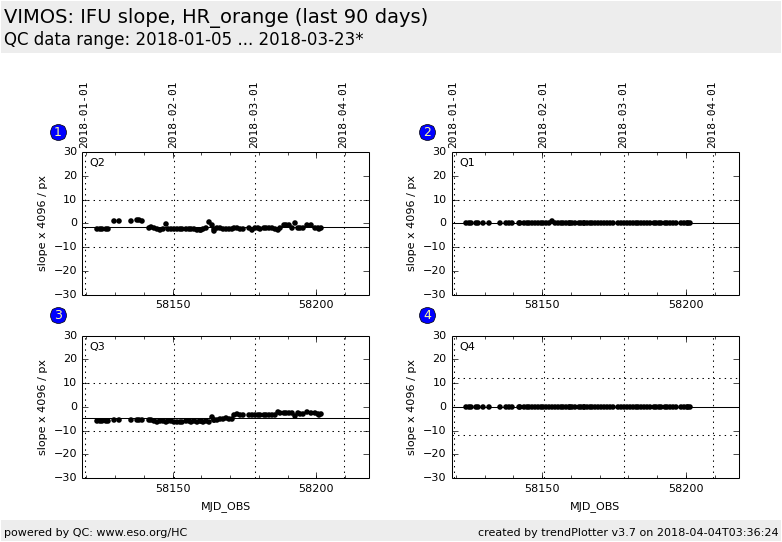

Plot 1
scores: 5|
data source:vimos_ifu_score
(QC1 database)
dataset:trace2_slope
mean:-1.18pix
fixed thresholds:-10...10pix
N_data plotted:85
[click on plot for closeup]
Plot 2
scores: 8|
data source:vimos_ifu_score
(QC1 database)
dataset:trace2_slope
mean:5.21pix
fixed thresholds:-10...10pix
N_data plotted:83
[click on plot for closeup]
Plot 3
scores: 5|
data source:vimos_ifu_score
(QC1 database)
dataset:trace2_slope
mean:4.57pix
fixed thresholds:-10...10pix
N_data plotted:86
[click on plot for closeup]
Plot 4
scores: 5|
data source:vimos_ifu_score
(QC1 database)
dataset:trace2_slope
mean:-2.84pix
fixed thresholds:-12...12pix
N_data plotted:85
[click on plot for closeup]
This plot

Trending plot for slope of fibre traces (IFU).

The QC1 parameter QC.IFU.TRACE2.SLOPE is multiplied with 4096 (the Y dimension of the CCD). The result should stay within +/- 10 pixels around zero.

Setting HR_orange is usually measured daily; other settings only when science frames have been observed.

Template ID: ifu_cal_DayCalib (daytime Health Checks), ifu_cal_NightCalib (attached night-time). Pipeline recipe: vmifucalib.


General information

Click on any of the plots to see a close-up version.

If applicable, the latest values from Paranal ops logs are plotted as blue dots. More information about those values, including a download option, is available in the OPS column.

The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
