| NAME | qc_DARK.sh | ||||||||||||||
| VERSION |
1.0 -- 2006-10-11 2.0 -- 2008-06-10 2.1 -- 2009-12-17, reference frames read from AB 3.0 -- 2010-01-27, docu updated for start of operation 3.1 -- 2017-08-30, docu updated | ||||||||||||||
| SYNTAX | SHELL | ||||||||||||||
| CALL |
called by processQC from $DFS_PRODUCT/DARK/$DATE: CALL_SYNTAX DARK 0000.fits &&qc_DARK -a $AB -u vircam -e 0 -level 3 2\>\&1 \> $DFS_LOG/$AB.qclog&& | ||||||||||||||
| INSTRUMENT | VIRCAM | ||||||||||||||
| RAWTYPE | DARK | ||||||||||||||
| PURPOSE |
quality control script for VIRCAM DARK product frames -level 0 : Reads QC parameters from product fits headers and writes them into the QC1 DB. -level 1 : Fits a Gaussian to the histogram of the product to obtain robust median and rms. -level 2 : Generates a QC graphical report. -level 3 : Generates a hot pixel map, a cold pixel map, a deviant pixel map, and a deviant product. level 3 includes all steps of level 2, level {n} includes all steps of level {n-1}. This shell script calls a number of python scripts. | ||||||||||||||
| PROCINPUT |
There are three command line paramaters: -a {AB} -e {extensions} -level {processing category} use -e -1 for final QC processing requirering all detectors (equivalent to joinAB) use -e 0 to process all extension sequentially (1..16) and thereafter the QC that requires all extension This means using -e 0 is the same as calling one after the other with -e 1 .. -e 16 and thereafter one call with -e -1 a) -e 1..16 -level 0 : for an individual extension do : writeQC b) -e 1..16 -level 1 : for an individual extension do : writeQC + histogram fit c) -e 1..16 -level 2 : for an individual extension do : writeQC + histogram fit + QC report d) -e 1..16 -level 3 : for an individual extension do : writeQC + histogram fit + QC report + extras where extras are the number of hot pixels, the number of cold pixel and th the number of deviant pixel e) -e -1 -level 0 : writeQC -m AVERAGE f) -e -1 -level 1 : writeQC -m AVERAGE g) -e -1 -level 2 : writeQC -m AVERAGE h) -e -1 -level 3 : writeQC -m AVERAGE + extras where extras are : generate a hot a cold and a deviant pixel map as fits product REFERENCE_DARK DIFFIMG_DARK products are read from the AB. | ||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: vircam_dark | ||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_DARKMED_1_10011_AVG_HC.html | trend_report_DARKMED_1_120_AVG_HC.html | trend_report_DARKRMS_1_10011_AVG_HC.html | trend_report_DARKRMS_1_120_AVG_HC.html | trend_report_STRIPERMS_1_10011_AVG_HC.html | trend_report_STRIPRMS_1_120_AVG_HC.html | trend_report_RON12_1_10011_AVG_HC.html | trend_report_RON12_1_120_AVG_HC.html | ||||||||||||||
| QC1PAGE |
trending | associated documentation: qc_VC_dark.html | ||||||||||||||
| QC1PLOTS top |

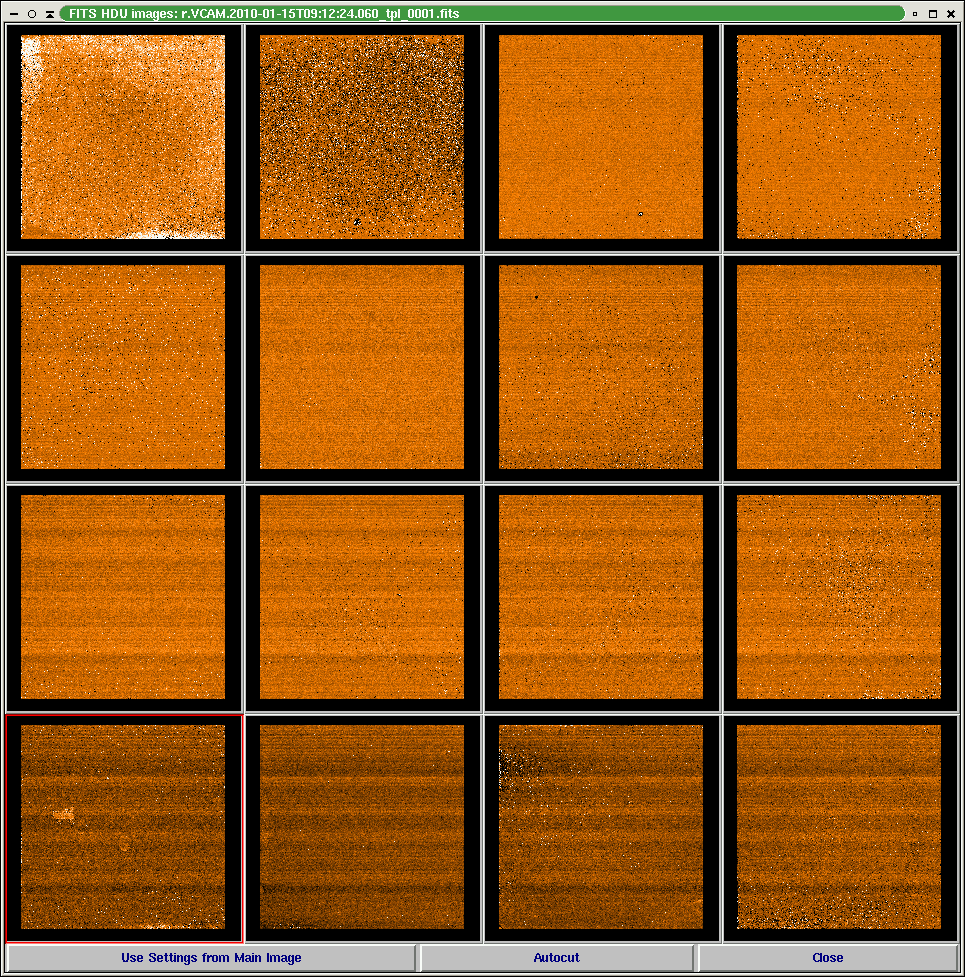

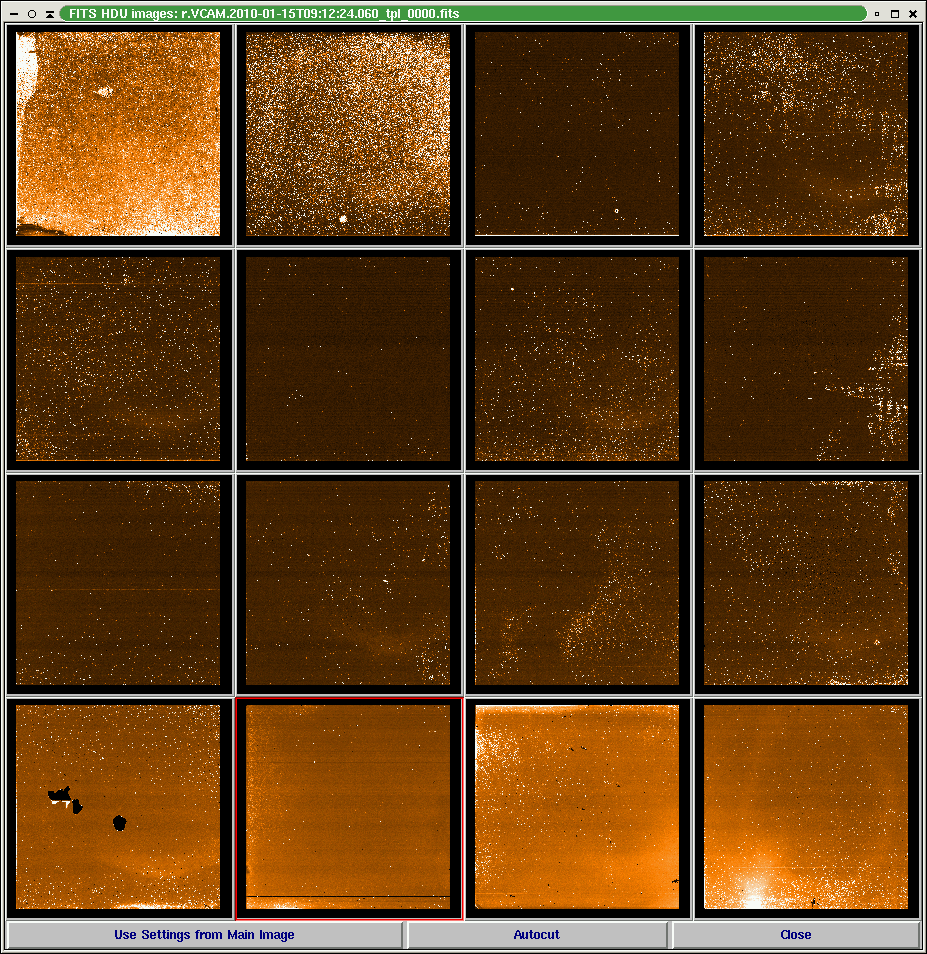

masterdark.png master dark product, snapshot from SkyCat differencedark.png difference dark product, snapshot from SkyCat dark_qcreport_0.png QC report for individual detector UL: cross sections of the MASTER_DARK UC: cross section of the MASTER_DARK UR: histogram and fit of the MASTER_DARK LL: cross section of the DIFFIMG_DARK LC: cross section of the DIFFIMG_DARK LR: image of the DIFFIMG_DARK dark_qcreport_1.png QC report for individual detector UL: stripe pattern, cross section of raw darks UC: zoom view | ||||||||||||||
| QC1PARAM |
QC1 parameters generated by pipeline and written into QC1 table and scored: The many more QC1 parameters ingested into the QC1 DB, that do not show up in any HC plot and are not score, are not listed here. NameInHeader, DBNAME , typical value, description: QC.DARKMED qc_darkmed QC.DARKRMS qc_darkrms RMS of master dark (measures FPN) QC.STRIPERMS qc_stripe_rms QC1 parameters generated by qc_DARK and written into QC1 table: DBNAME , typical value, description: qc_post_man , dark median from histogram fit qc_post_mdm , dark stddev from histogram fit qc_num_hp , number of hot pixel qc_num_cp , number of cold pixel qc_num_dp , number of deviant pixel qc_dev_mean , mean of all pixel deviations qc_dev_std , stdev of all pixel deviations qc_ron12 , RON from (raw2 minus raw1) , (the only script-based QC parameter, that is scored) qc_ron23 , RON from (raw3 minus raw2) qc_ron34 , RON from (raw4 minus raw3) qc_ron45 , RON from (raw5 minus raw4) | ||||||||||||||
| ALGORITHM |
Description of algorithms: qc_darkmed, median, for details, see the pipeline manual qc_darkrms, MAD, for details, the see pipeline manual qc_stripe_rms rms from single detector, for details, the see pipeline manual qc_postman, fit MASTER_DARK density histogram by Gaussian, get mu qc_postmdm, fit MASTER_DARK density histogram by Gaussian, get sigma qc_num_hp, qc_num_cp, qc_num_dp, number of hot cold and deviant pixel qc_dev_mean, fit DEVIANT product density histogram by Gaussian, get mu qc_dev_std, fit DEVIANT product density histogram by Gaussian, get sigma qc_ron12, qc_ron23, qc_ron34, qc_ron45, read noise from consecutive raw frames | ||||||||||||||
| CERTIF | NONE | ||||||||||||||
| COMMENTS |
The aggregate (AVG and RMS over 16 detectors) values of only four QC parameters are scored. (see score report): median, rms, ron and stripes The read out noise of the detector can not be measured. The value of qc_ron12 is composed of the detector read noise plus the variations of the stripes. The stripe_rms turned out to be less significant for strong stripes events than the qc_ron12. Thresholds are documented in the plot tutorial. | ||||||||||||||
| top | [2022-02-28T08:09:47] created by qcDocu v1.1.2, a tqs tool | ||||||||||||||
