VIMOS MOS Spectral Formats

MOS Spectral Formats Plots

• LR-Red grism
• LR-Blue grism
• MR grism
• HR-Red grism, slit at center
• HR-Red grism, slit at +4.0'
• HR-Red grism, slit at -4.0'
• HR-Orange grism, slit at center
• HR-Orange grism, slit at +4.0'
• HR-Orange grism, slit at -4.0'
• HR-Blue grism, slit at center
• HR-Blue grism, slit at +4.0'
• HR-Blue grism, slit at -4.0'

The following figures illustrate the MOS spectral formats. In yellow is indicated the edge of the imaging field of view. The start and end wavelengths are indicated (in nm) below the lines symbolizing the spectra, and the corresponding spectral resolutions are indicated above the lines. 3 layers of spectra are shown for illustration. The dots indicate the object/slit positions.

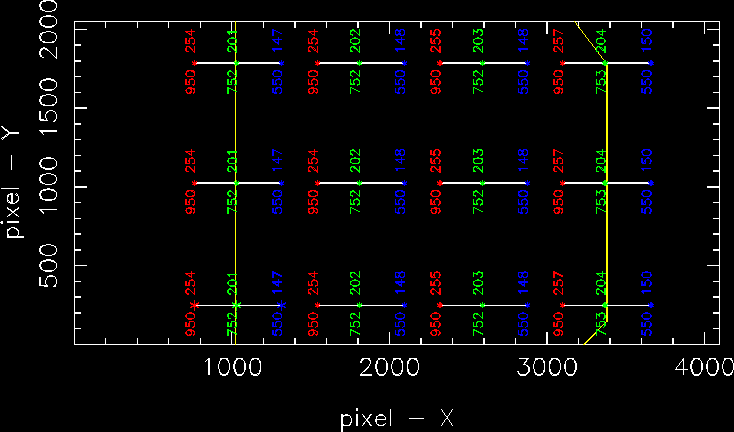

LR-Red grism

LR-Blue grism

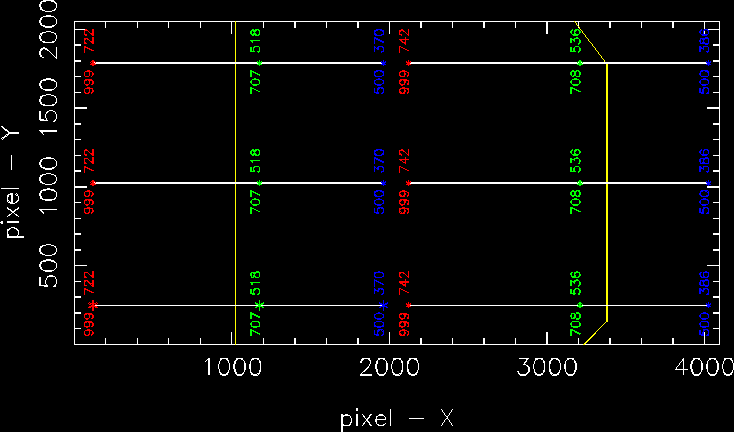

MR grism

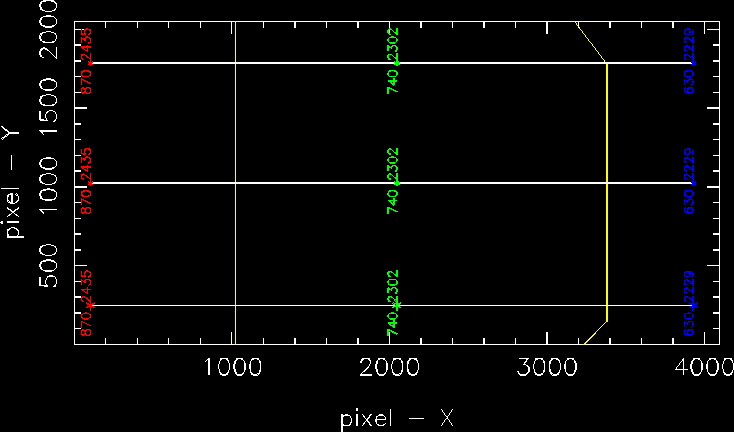

HR-Red grism, slit at center

HR-Red grism, slit at +4.0'

HR-Red grism, slit at -4.0'

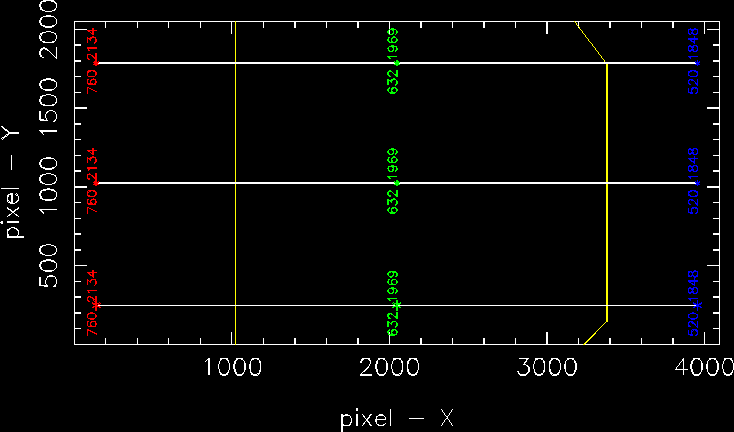

HR-Orange grism, slit at center

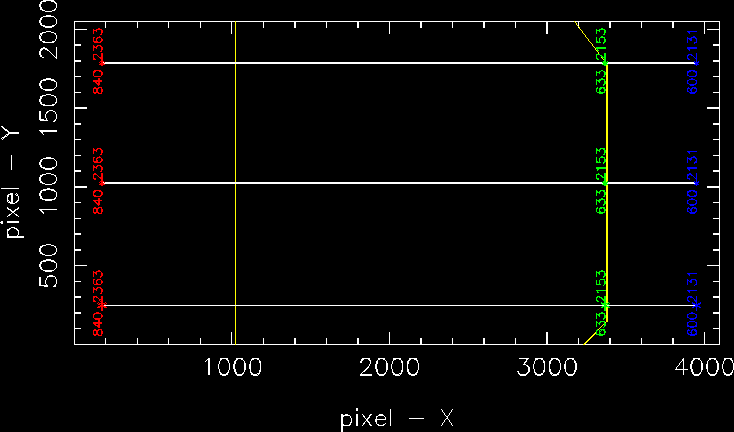

HR-Orange grism, slit at +4.0'

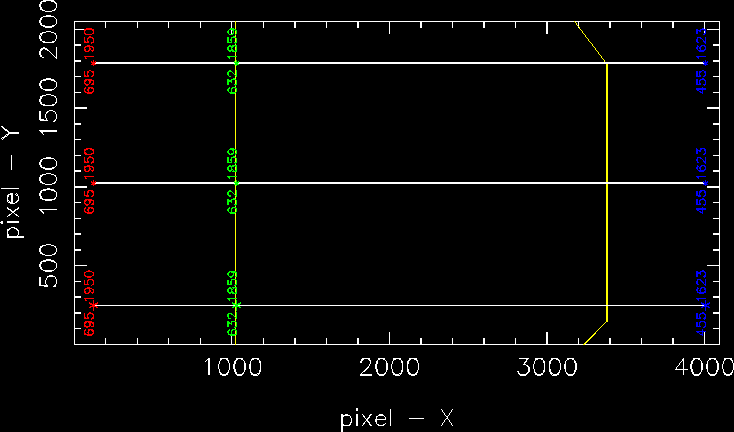

HR-Orange grism, slit at -4.0

HR-Blue grism, slit at center

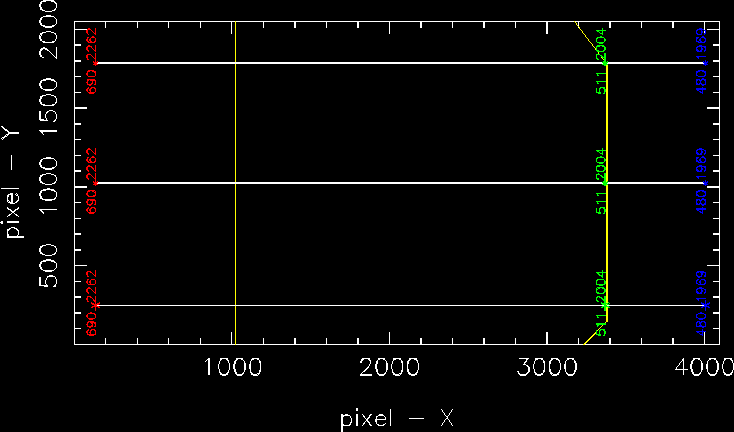

HR-Blue grism, slit at +4.0'

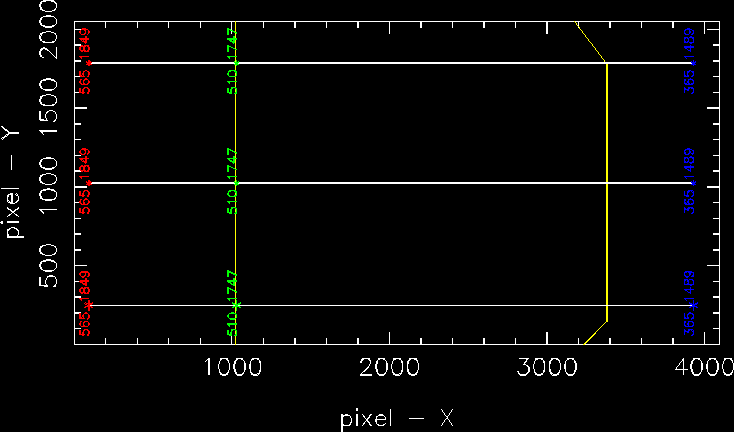

HR-Blue grism, slit at -4.0'
