APEX–2A

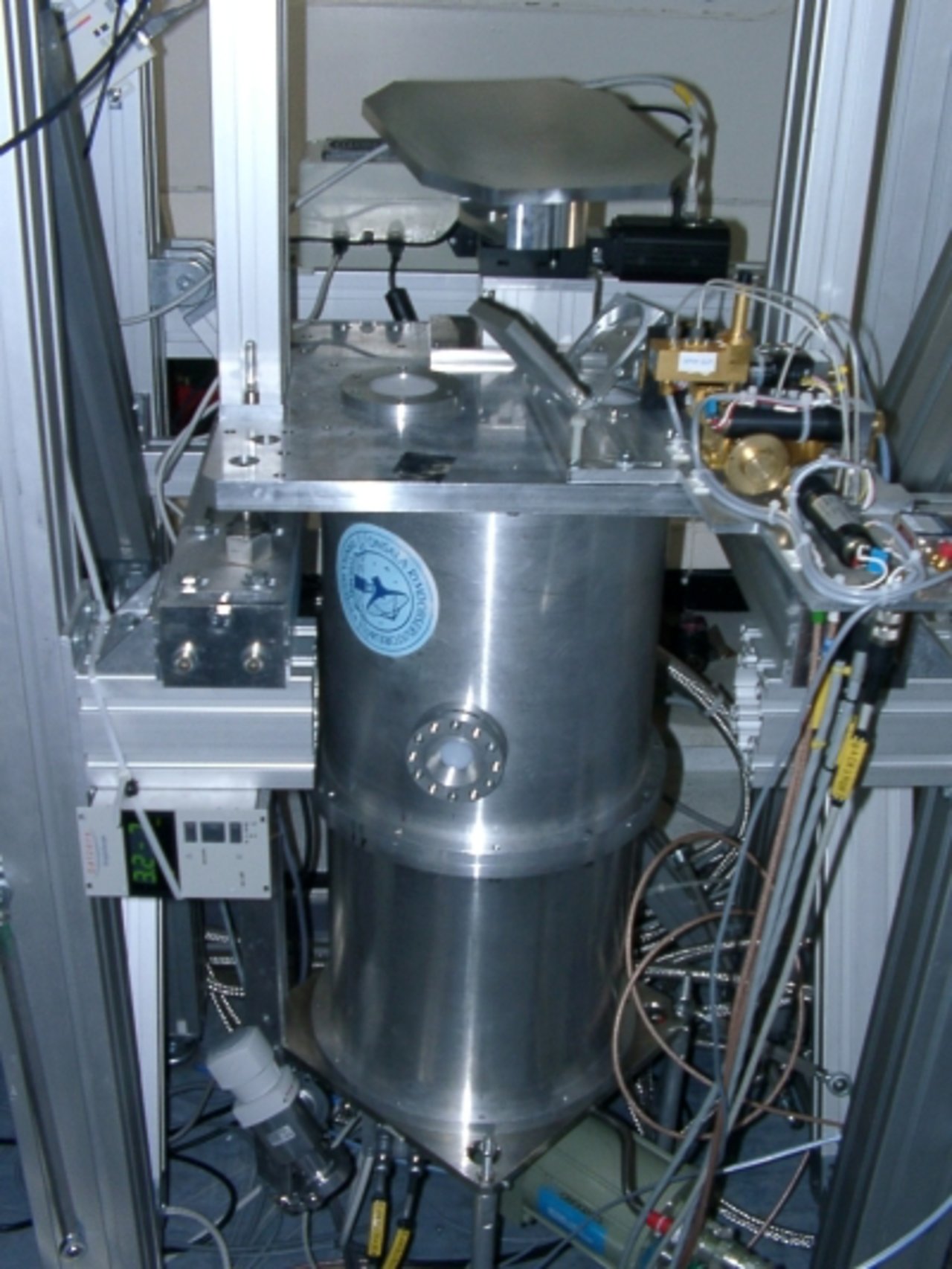

The APEX–2A instrument was mounted on the Atacama Pathfinder Experiment (APEX) telescope on the Chajnantor plateau, in Chile’s Atacama region in the Summer of 2005.

It was a 345 GHz band heterodyne receiver developed by the GARD group at Chalmers University of Technology, Sweden and was set up at the Nasmyth–A focus of APEX, having a tuning range between 1.07 mm (279 GHz) and 0.79 mm (381 GHz).

The receiver could be used in different observing modes and patterns that allowed observations of a fixed position, on a grid or in a continuous scanning mode.

The APEX–2A instrument was decommissioned in 2008 and replaced by SHeFI/APEX–2.

APEX–2A on APEX technical specifications

This table lists the global capabilities of the instrument. The authoritative technical specifications as offered for astronomical observations are available from the Science Operations page.

Location: Decommissioned
Telescope: APEX
Focus: Nasmyth
Type: Receiver
Wavelength coverage: Submillimetre, 0.79–1.07 mm
Spatial resolution:
Spectral resolution:
First light date: 2005
Science goals:



Images taken with the instrument: N/A
Images of the instrument: N/A
Press Releases with the instrument: N/A

Consortium:

  • ESO
  • GARD
